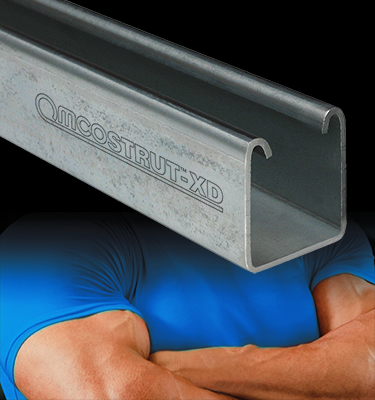

12 Gauge OmcoSTRUT™-XD High Strength Structural Channel
For engineers and contractors looking to design in more safety, 12 gauge OmcoSTRUT-XD is a great choice. Made of 50,000 psi high strength roll formed steel, it provides a 40% greater design limit … at a price similar to traditional strength 12 gauge strut.
Standard 12 Gauge Strut |
12 Gauge OmcoSTRUT-XD |
OMCO Advantage |
|
---|---|---|---|
Virgin Base Metal – Minimum Yield |
33,000 psi |
50,000 psi |
17,000 psi (51%) |
Work Hardened Metal – Minimum Yield |
42,000 psi |
59,000 psi |
17,000 psi (40%) |
Design Load @ 1.68 Safety Factor |
25,000 psi |
35,000 psi |
10,000 psi (40%) |
Safety Factor vs. Virgin Base Metal |
8,000 psi |
15,000 psi |
7,000 psi (87%) |
Product Dimensions – 12 Gauge Strut
Product Number | Width | Length | Height | Plain | PreGalv | Green | Stainless |
---|---|---|---|---|---|---|---|
XD12 | 1-5/8″ | 120″/240″ | 13/16″ | ✔ | ✔ | ✔ | ✔ |
XD22 | 1-5/8″ | 120″/240″ | 1″ | ✔ | ✔ | ✔ | ✔ |
XD42 | 1-5/8″ | 120″/240″ | 1-5/8″ | ✔ | ✔ | ✔ | ✔ |
XD52 | 1-5/8″ | 120″/240″ | 2-7/16″ | ✔ | ✔ | ✔ | ✔ |
Material Specifications
Product Number | Dimensions |
---|---|
Round Holes (RH) | 9/16″ Holes on 1-7/8″ ctrs |
Half-Slot (HS) | 9/16″ x 1-1/8″ Slots on 2″ ctrs |
Full Slot (FS) | 7/16″ x 3″ Slots on 4″ ctrs |
Hole Configurations
Material | Steel Specifications |
---|---|
Pre-Galvanized (PG) | 50,000 psi min yield G90 |
Plain (PL) | 50,000 psi min yield |
Green Powder Coat (GR) | 50,000 psi min yield |
Stainless Steel (SS4, SS6) | 304 0r 316 Stainless |
Custom Strut Orders
Available Services* |
---|
✔ Cut-to-Length |
✔ Custom Hole / Slot Patterns |
✔ Special Material Specifications |
✔ Custom Packaging |
✔ Custom Punch Design |
✔ Fastener Insertion |
✔ Special Color / Finish Spec. |
✔ Sub-Assembly Services |
*Setup charges, tooling costs and minimum
order quantities may apply.
Part Number Methodology
Product Number | Holes | Length | Finish | Complete Part Number |
---|---|---|---|---|
Strut Profile: 1-5/8″ x 1-5/8″ 12 ga | Half Slot | 120 inches | Pre-Gal | XD42HS-120PG |
XD42 | HS | 120 | PG |
